Excavation Depth Configuration
Dimension Schemes: 1.38m Deep
Configuration A
| Dimension Schemes (1.38m) A | |
|---|---|
| OSHA Soil Type | A-25, B-45, or C-60 |
| Maximum Depth | 2000 mm |
| Maximum Width (Composite Struts) | 1760 mm |
| Maximum Width (Steel Struts) | 2500 mm |
| Surcharge Pressure (PSF) | 0 |
| Endloadable | Yes |
| 60 mm Off Bottom | Yes |
| Note: - This table is applicable for all configurations on this page - All infill piles to have minimum overlap of 1 interlock - Dimensions are in mms |
|
| Width | Cohesive | Granular |
|---|---|---|
| 1.5m wide | ü | ü |
| 2.0m wide | ü | ü |
| 2.5m wide | ü | ü |
| 3.0m wide | ü | ü |
GRANULAR
Bulk Density = 17.0kN/m³
Phi Angle = ϕ 30°
COHESIVE
Bulk Density = 18.6kN/m³
Cohesion = Cu = 40kN/m²
Surcharge = 10kN/m²
(blanket)
**NO WATER PRESSURE CONSIDERED**

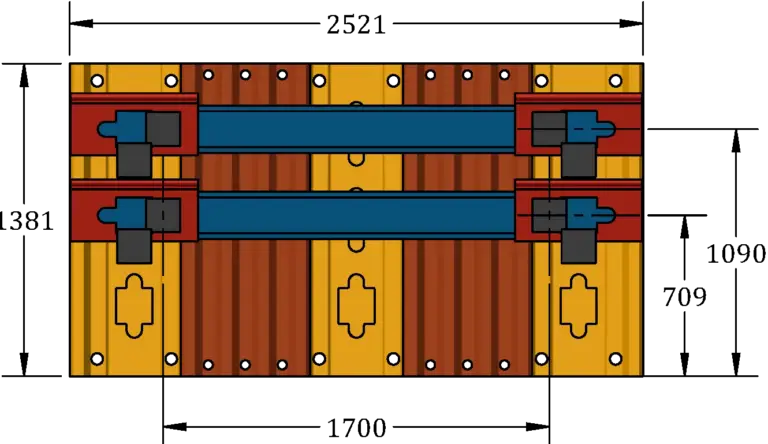

Configuration B
| Dimension Schemes (1.38m) B | |
|---|---|
| OSHA Soil Type | A-25, B-45, or C-60 |
| Maximum Depth | 2000 mm |
| Maximum Width (Composite Struts) | 1760 mm |
| Maximum Width (Steel Struts) | 2500 mm |
| Surcharge Pressure (PSF) | 0 |
| Endloadable | Yes |
| 60 mm Off Bottom | Yes |
| Note: - This table is applicable for all configurations on this page - All infill piles to have minimum overlap of 1 interlock - Dimensions are in mms |
|
| Width | Cohesive | Granular |
|---|---|---|
| 1.5m wide | ü | ü |
| 2.0m wide | ü | ü |
| 2.5m wide | ü | ü |
| 3.0m wide | ü | ü |
GRANULAR
Bulk Density = 17.0kN/m³
Phi Angle = ϕ 30°
COHESIVE
Bulk Density = 18.6kN/m³
Cohesion = Cu = 40kN/m²
Surcharge = 10kN/m²
(blanket)
**NO WATER PRESSURE CONSIDERED**
